4 Nozzle Lengths
4 Nozzle Diameters
2 Thread Sizes

Dimensions

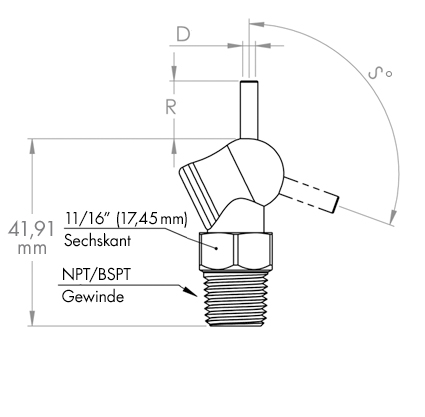

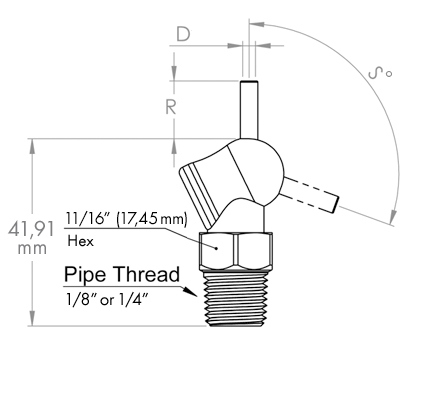

Dimensions HPT Nozzle XW Type

Nozzle Adjustment

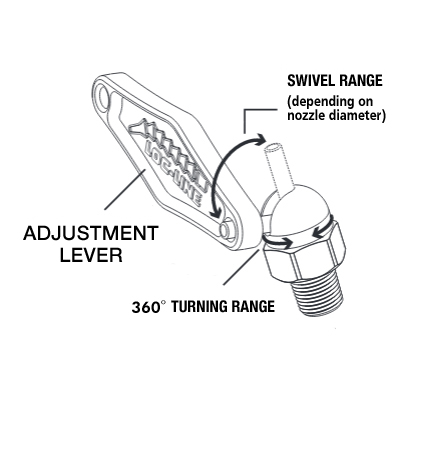

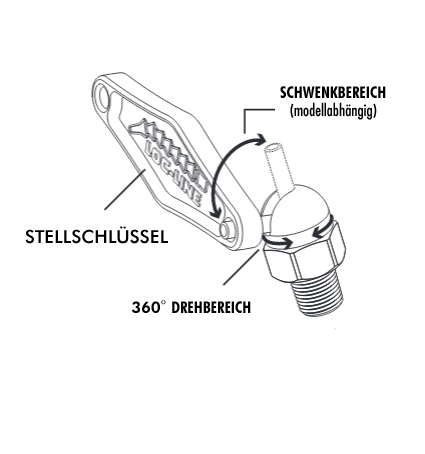

HPT Nozzle - Nozzle Adjustment

Adjustment Lever

Adjustment Lever
for LOC-LINE HPT Nozzles
Art.No: 72000


HP Turret Nozzle XW Type

LOC-LINE High Pressure Nozzle with extra wide swivel range up to 110°!

Technical Details

  • Maximum Pressure:      70 bar High Pressure
  • Swivel Range:             Smax = 110°
  • Turning Range:                 can be rotated 360°

Special Features

  • Extra wide swivel range.
  • After being screwed in and adjusted LOC-LINE HP Turret Nozzles stay absolutely stable in position.

Versions

  • 2 Thread Sizes:           1/8" and 1/4" NPT/BSPT
  • 4 Nozzle Diameters:   1,6  /  2,2  /  3,0  /  4,1 mm
  • 4 Nozzle Lengths:            0  /  6,4  /  12,7  /  31,8 mm

1/8" NPT/BSPT LOC-LINE HPT Nozzle (XW Type)

Nozzle Length06,412,731,8
Nozzle DiameterArt. No.Art. No.Art. No.Art. No.Swivel Range S
Nozzle length and diameter in mm
1,672040720417204272043110°
2,272044720457204672047110°
372048720497205072051110°
4,172052720537205472055102°

1/4" NPT/BSPT LOC-LINE HPT Nozzle (XW Type)

Nozzle Length06,412,731,8
Nozzle DiameterArt. No.Art. No.Art. No.Art. No.Swivel Range S
Nozzle length and diameter in mm
1,672080720817208272083110°
2,272084720857208672087110°
372088720897209072091110°
4,172092720937209472095102°
