Pitbull Clamps

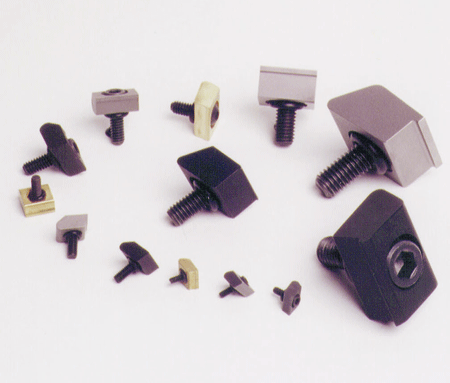

The Pitbull® Fixture Clamp has many advantages such as a positive down force generating high vertical and horizontal holding forces up to 37,5 kN (see chart).
- Strong holding forces -> safe, precise clamping
- Extremely low profile -> no interfering edges
- Compact design -> maximum tool access

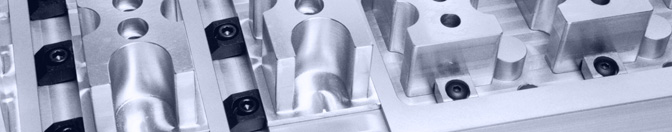

- Space-saving -> clamping of multiple workpieces

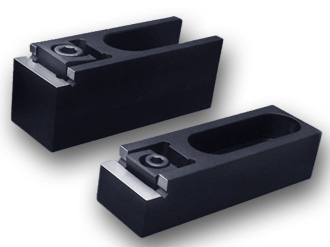

Available in 3 styles:
- out of tool steel with knife edge for stock removal,
- out of tool steel with blunt edge for general purpose,
- out of brass to prevent marring the workpiece.

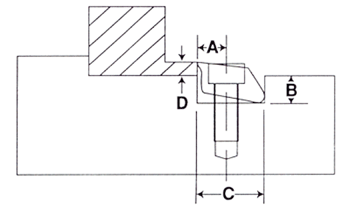

| Art.No. | Clamp | Mat | A | B | C | D | Thread | Clamp | Hold | Torque | Clamping | Per |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Edge | * | H9 | Width | Force | Travel | Pack | ||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [Nm] | [mm] | |||||
| * Material: S: Steel, B: Brass | ||||||||||||
| 56000 | knife | S | 3,8 | 3,6 | 9,5 | 1,9 | M2,5 | 9,5 | 2,8 | 1,8 | 0,15 | 8 |
| 56010 | blunt | S | 3,8 | 3,6 | 9,5 | 1,9 | M2,5 | 9,5 | 2,8 | 1,8 | 0,15 | 8 |
| 56015 | blunt | B | 3,8 | 3,6 | 9,5 | 1,9 | M2,5 | 9,5 | 0,9 | 0,6 | 0,15 | 8 |
| 56020 | knife | S | 5,1 | 4,8 | 12,7 | 2,6 | M4 | 12,7 | 6,6 | 5,6 | 0,4 | 8 |
| 56030 | blunt | S | 5,1 | 4,8 | 12,7 | 2,6 | M4 | 12,7 | 6,6 | 5,6 | 0,4 | 8 |
| 56040 | blunt | B | 5,1 | 4,8 | 12,7 | 2,6 | M4 | 12,7 | 1,8 | 2,8 | 0,4 | 8 |
| 56050 | knife | S | 7,6 | 7,2 | 19,05 | 3,8 | M6 | 19,1 | 16 | 22,5 | 0,6 | 6 |
| 56060 | blunt | S | 7,6 | 7,2 | 19,05 | 3,8 | M6 | 19,1 | 16 | 22,5 | 0,6 | 6 |
| 56065 | blunt | B | 7,6 | 7,2 | 19,05 | 3,8 | M6 | 19,1 | 4,2 | 5,6 | 0,6 | 6 |
| 56070 | knife | S | 10,2 | 11,4 | 25,4 | 6,3 | M10 | 25,4 | 26 | 40 | 1,2 | 4 |
| 56075 | blunt | S | 10,2 | 11,4 | 25,4 | 6,3 | M10 | 25,4 | 26 | 40 | 1,2 | 4 |
| 56080 | knife | S | 15,2 | 16,3 | 38,1 | 9,5 | M12 | 38,1 | 37,5 | 200 | 1,9 | 2 |
| 56085 | blunt | S | 15,2 | 16,3 | 38,1 | 9,5 | M12 | 38,1 | 37,5 | 200 | 1,9 | 2 |
While fastening the screw, the Pitbull® Fixture Clamp supports it's self on it's backside and clamps forward and downward with high holding forces up to 37,5 kN (positive down force).
Included in delivery:
- 1 x Cap Screw (DIN 912),
- 1 x Clamp,
- 1 x O-Ring, oil-resistant.
