MITEE-BITE Locating Rails
Is it taking too long to make a fixture and start production?

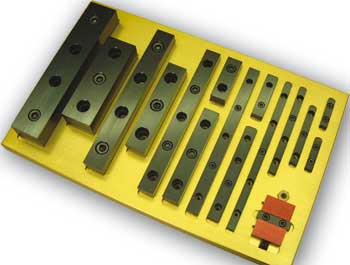

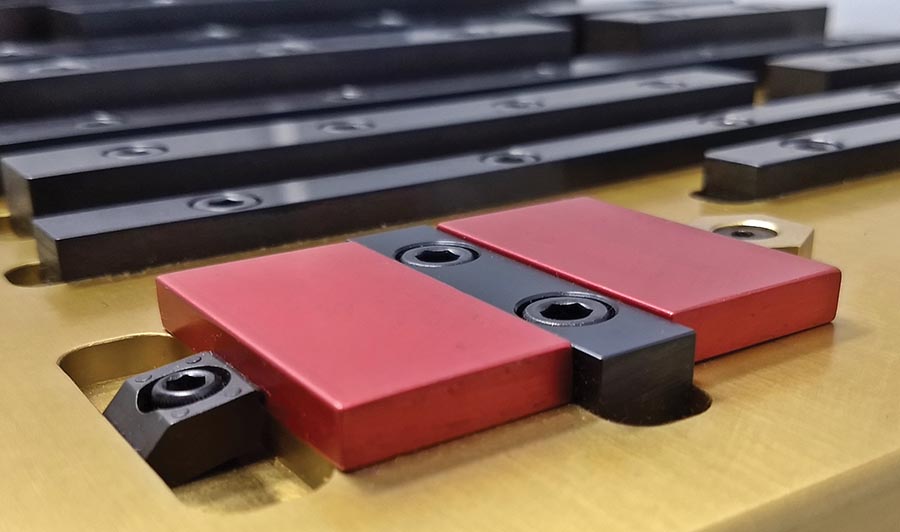

MITEE-BITE Ready Made Locating Rails make building a fixture easy and quick, and thus very economical!
- Available in a great number of sizes and lengths
to suit most applications, - Made of low carbon steel to machine steps,
radii and contours on the rails, - Precision ground to ensure exact work results,
- All required screws are included (DIN 912).

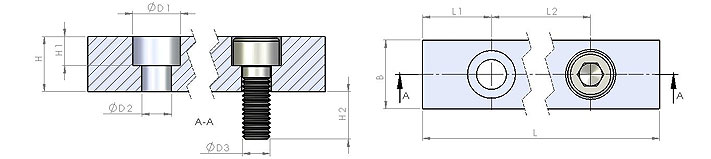

| Art. No. | H | H1 | H2 | B | L | L1 | L2 | D | D2 | D3 | Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | # | ||
| 83200 | 12 | 6,35 | 11 | 15 | 50 | 15 | 20 | 10,4 | 6,5 | M6 | 2 |
| 83210 | 12 | 6,35 | 11 | 15 | 100 | 20 | 30 | 10,4 | 6,5 | M6 | 3 |
| 83220 | 12 | 6,35 | 11 | 15 | 150 | 30 | 30 | 10,4 | 6,5 | M6 | 4 |
| 83240 | 12 | 6,35 | 11 | 15 | 250 | 25 | 50 | 10,4 | 6,5 | M6 | 5 |
| 83260 | 18 | 10,9 | 18 | 24 | 75 | 20 | 35 | 16,76 | 10,4 | M10 | 2 |
| 83280 | 18 | 10,9 | 18 | 24 | 150 | 30 | 30 | 16,76 | 10,4 | M10 | 4 |
| 83300 | 18 | 10,9 | 18 | 24 | 250 | 25 | 50 | 16,76 | 10,4 | M10 | 5 |
Locating Rail Installation
- Mill a slot to locate the rail. Depth of slot will
determine rail height. - Drill and tap the required holes to mount the rail.
- For better rigidity, the rail should be pinned to
the fixuture plate with dowel pins. - If rails are to be machined to hold round pieces,
the clamps should be mounted and both rail and clamp machined at the same time.
