MITEE-BITE Cam Action Clamps for Machine Tables

CAM Action Clamps for Machine Tables

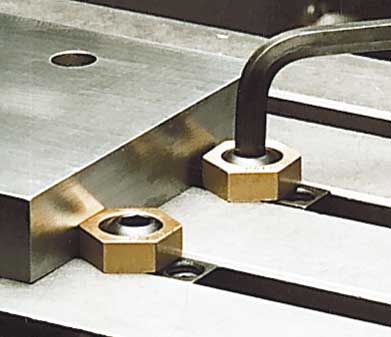

Combined with a slot nut you make out of every MITEE-BITE cam action clamp with a hexagonal brass washer or knife edge washer a low-cost clamp for Machine Tables or Mounting Plates with t-slots.
The slot nut simply will be locked with a screw into the t-slot.

Key benefits:

Locks in machine T-slot for low profile clamping.
Makes fast set-ups possible right on the machine table.
Brass hex follows contour of unusual shaped parts.
Strong holding force up to 27kN (2,7t).
Good value for money!

for	Hexagon	Thread	Thread	Washer	Washer	Clamping	Holding	Per Pack	Art. No.
T-Slot	Socket		Length	SW	Height	Travel	Force
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
8	3	M6	12	16	4,8	1,0	3,4	2	X50422
10	4	M6	12	16	4,8	1,0	3,4	2	X50424
10	5	M8	16	21	4,8	1,0	3,6	2	X50426
14	7	M10	20	21	6,4	1,6	9,0	2	X50428
16	8	M12	25	25	9,5	2,0	18	2	X50430
18	8	M12	25	25	9,5	2,0	18	2	X50432
20	12	M16	30	30	12,7	2,5	27	2	X50434
22	12	M16	30	30	12,7	2,5	27	2	X50436

Fixture Clamps for Machine Tables

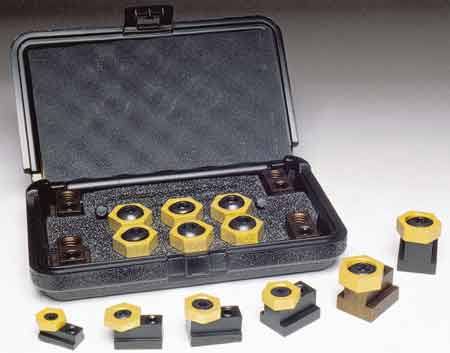

13-part kit for T-slots 8 - 22 mm, with storage-box, containing:

6 Fixture Clamps with hexagonal brass washer
4 T-Nuts
2 Hex Keys

for T-Slot [mm]	8	10	12	14	16	18	20	22
Art. No.	X50642	X50644	X50646	X50648	X50650	X50652	X50654	X50656

Spare-Screws

Thread	Per Pack	Art. No.
M6	10	X50365
M8	8	X50367
M10	4	X50369
M12	4	X50371
M16	4	X50373

Spare-Washer

Size	Per Pack	Art. No.
M6	10	X10582
M8	8	X10584
M10	4	X10586
M12	4	X10590
M16	4	X10592

Spare-T-Nuts

f. T-Slot	Per Pack	Art. No.
[mm]
8	2	X50708
10	2	X50710
12	2	X50712
14	2	X50714
16	2	X50716
18	2	X50718
20	2	X50720
22	2	X50722

CAM Action Clamps for Machine Tables

Fixture Clamps for Machine Tables

Spare-Screws

Spare-Washer

Spare-T-Nuts
