If you need an individual HOLDTEC Stand instead of a standard one:
- Choose the column and arm that fits your needs.
- Choose a base. (Note the 2 different threads M5 and M8).
- Choose the mounting that fits your needs (mountings fit to all articulated arms).
Ordering Example:
Let it be supposed that you want a stand with:
- Fine Adjustment on the Base,
- an operating radius 300 mm
- an extra-strong magnet
Choose the largest arm
HT4401 (280 mm).
Choose the base with the strongest magnet (1000 N)
and with fine adjustment HT0118. The thread on the base matches the thread on the bottom of the arm, both are M8.
Select the gauge mounting HT0215 (21.5 mm).

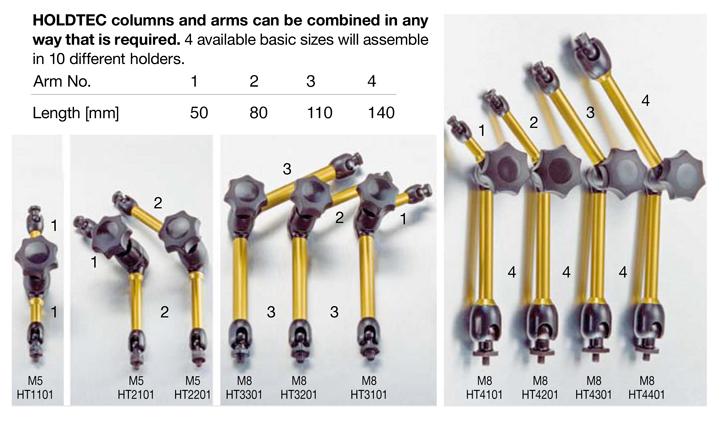

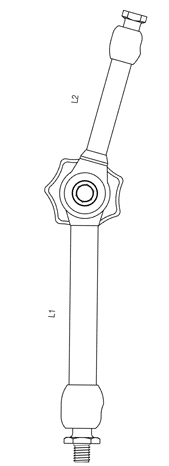

HOLDTEC Articulated Arms
| Art. Nr. | Bezeichnung | Länge (L1+L2) | Gewinde unten (D1) | Gewinde oben (D2) |
|---|---|---|---|---|
| All measurements in mm unless otherwise indicated. | ||||
| HT1101 | Säule 1 und Querarm 1 | 100 | M5 | M6 |
| HT2101 | Säule 2 und Querarm 1 | 130 | M5 | M6 |
| HT2201 | Säule 2 und Querarm 2 | 160 | M5 | M6 |
| HT3101 | Säule 3 und Querarm 1 | 160 | M8 | M6 |
| HT3201 | Säule 3 und Querarm 2 | 190 | M8 | M6 |
| HT3301 | Säule 3 und Querarm 3 | 220 | M8 | M6 |
| HT4101 | Säule 4 und Querarm 1 | 190 | M8 | M6 |
| HT4201 | Säule 4 und Querarm 2 | 220 | M8 | M6 |
| HT4301 | Säule 4 und Querarm 3 | 250 | M8 | M6 |
| HT4401 | Säule 4 und Querarm 4 | 280 | M8 | M6 |
