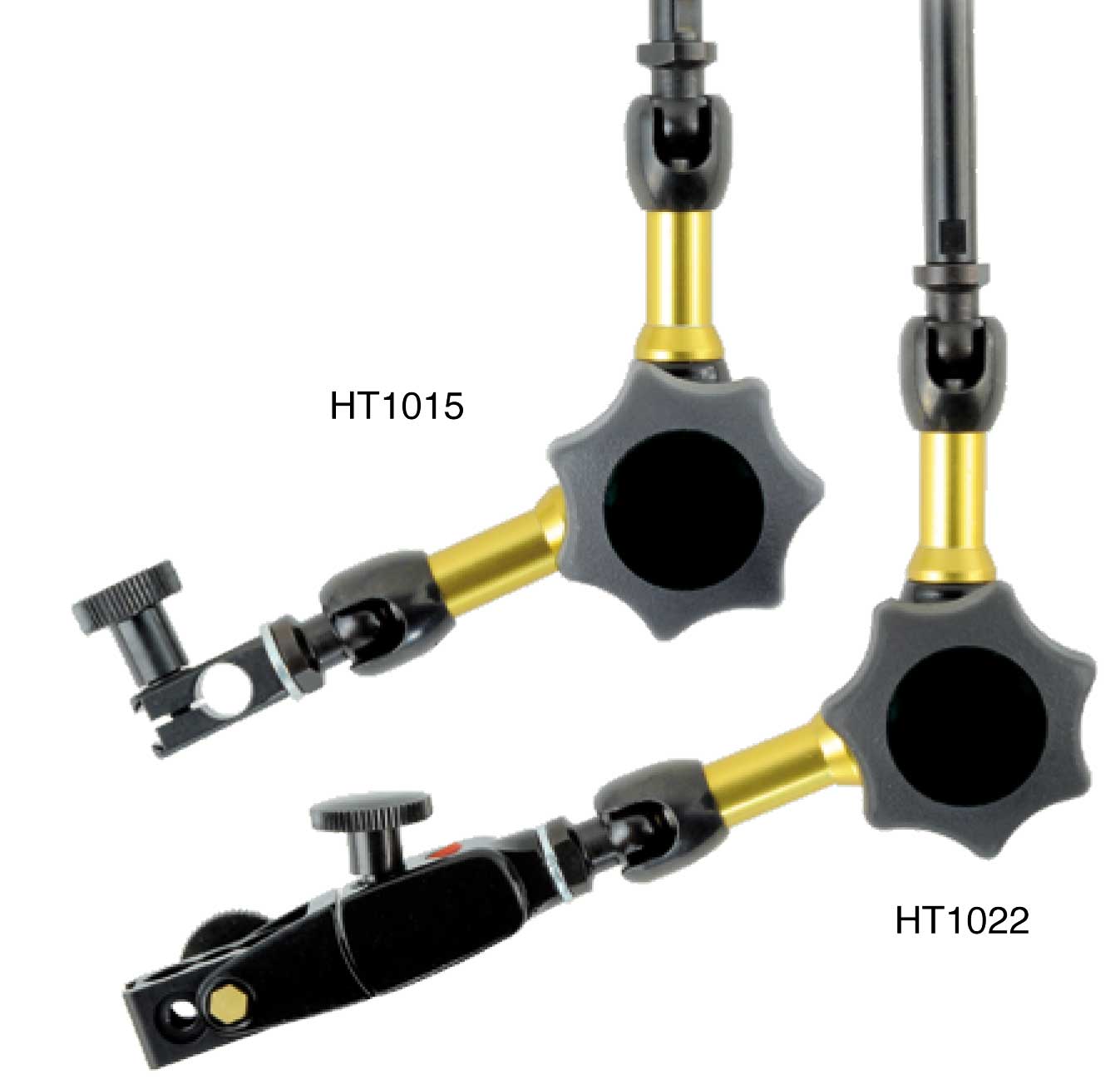

HOLDTEC Articulated Alignment Stands
HOLDTEC Alignment Stands
for the quick and exact alignment
of workpieces, vises and other devices

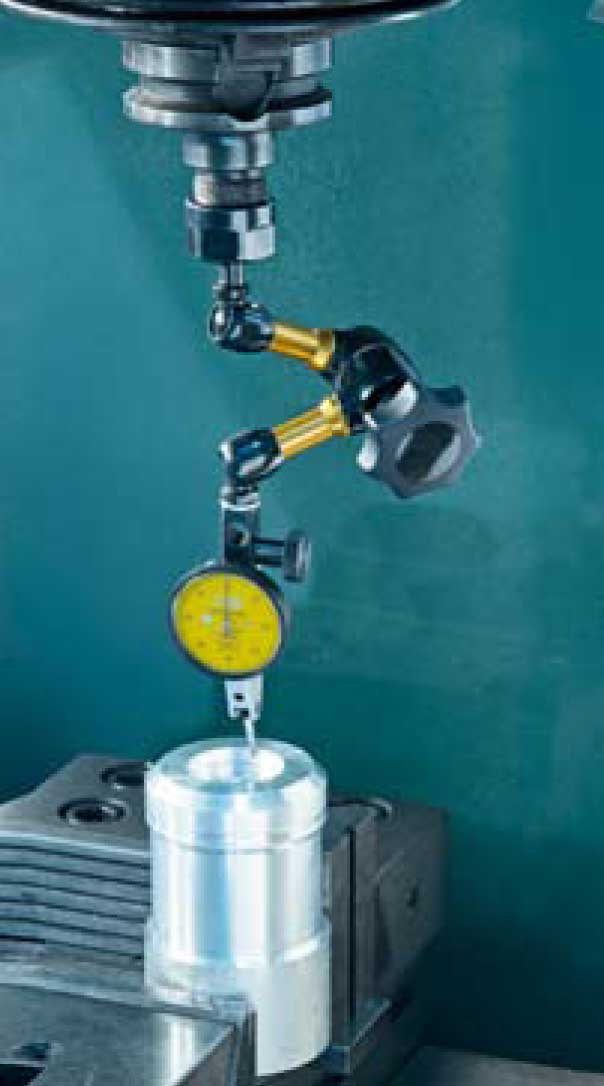

- To determine the center of holes or workpieces.
- For exact measuring of workpieces.
- Forr gauges with round shank or dovetail holding.
- Fast central locking mechanism with HOLDTEC
designed spring loaded bearing. - With Ø 8mm clamping shank for drill chucks or collets.
- With colum 50 mm and swifelarm 50 mm.
- Gold finished arms and columns.
| Art. Nr. | Bezeichnung | Aktionsradius | Säule (L1) | Querarm (L2) | Aufnahme | Länge (L3) |
|---|---|---|---|---|---|---|
| All measurements in mm unless otherwise indicated. | ||||||
| HT1015 | Ausrichtstativ | 121,5 | 50 | 50 | 8 | 21,5 |
| HT1022 | Ausrichtstativ mit Feineinstellung | 171 | 50 | 50 | 3/8”, 6, 8 | 71 |
