HP Turret Nozzle CD Type

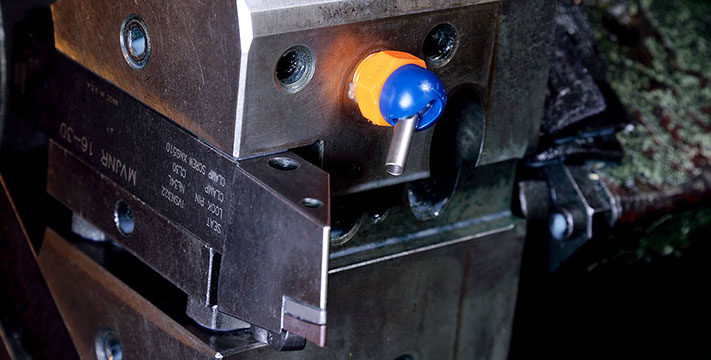

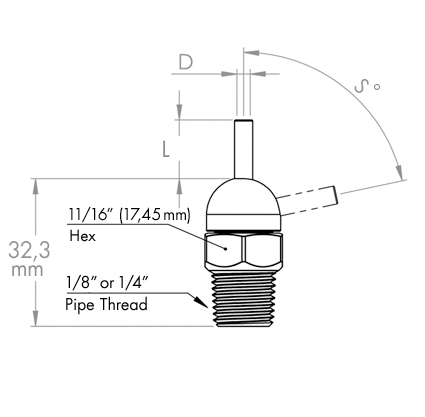

LOC-LINE High Pressure Nozzle particularly suitable for tight installation situations and with only 32 mm height (which includes 12 mm thread length) one of the most compact HP nozzles in the market!
Special Features
- Maximum Pressure: 70 bar High Pressure

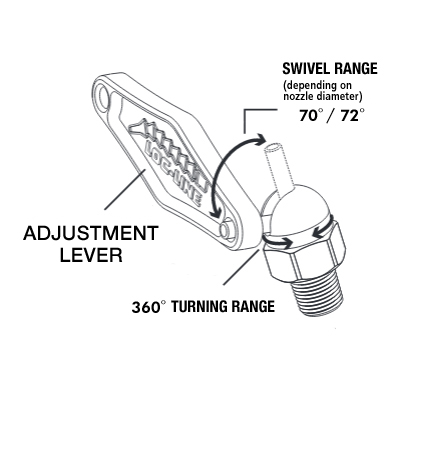

- Swivel Range: Smax = 72°
- Turning Range: can be rotated 360°
- Particularly compact.
- After being screwed in and adjusted the CD Nozzle
stays absolutely stable in position.
Versions
- 2 Thread Sizes: 1/8" and 1/4" NPT/BSPT
- 4 Nozzle Diameters: 1,6 / 2,2 / 3,0 / 4,1 mm
- 4 Nozzle Lengths: 0 / 6,4 / 12,7 / 31,8 mm

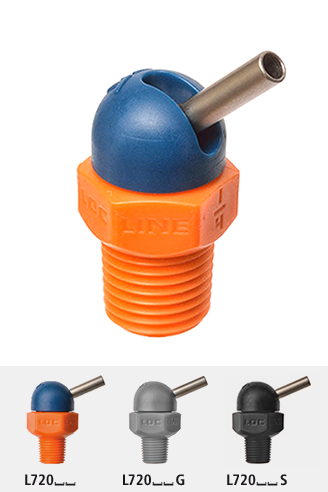

- 3 Colours: orange-blue / grey / black
1/8" NPT/BSPT LOC-LINE HPT Nozzle (CD Type)
| Nozzle Length | 0 | 6,4 | 12,7 | 31,8 | ||
|---|---|---|---|---|---|---|
| Nozzle Diameter | Art. No. | Art. No. | Art. No. | Art. No. | Swivel Range S | |
| Nozzle length and diameter in mm. Nozzle color: orange-blue | ||||||
| 1,6 | 72010 | 72011 | 72012 | 72013 | 72° | |
| 2,2 | 72014 | 72015 | 72016 | 72017 | 72° | |
| 3,0 | 72018 | 72019 | 72020 | 72021 | 72° | |
| 4,1 | 72022 | 72023 | 72024 | 72025 | 70° | |
1/4" NPT/BSPT LOC-LINE HPT Nozzle (CD Type)
| Nozzle Length | 0 | 6,4 | 12,7 | 31,8 | ||
|---|---|---|---|---|---|---|
| Nozzle Diameter | Art. No. | Art. No. | Art. No. | Art. No. | Swivel Range S | |
| Nozzle length and diameter in mm. Nozzle color: orange-blue | ||||||
| 1,6 | 72060 | 72061 | 72062 | 72063 | 72° | |
| 2,2 | 72064 | 72065 | 72066 | 72067 | 72° | |
| 3 | 72068 | 72069 | 72070 | 72071 | 72° | |
| 4,1 | 72072 | 72073 | 72074 | 72075 | 70° | |
