Eccentric Fixture Clamps with Machinable Steel Washer

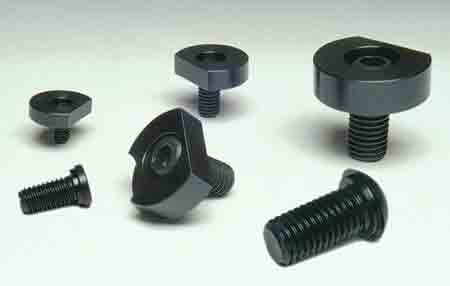

Combined with a washer made of mild steel the Fixture Clamp becomes the perfect clamp for holding round, unstable or unusual shaped parts.

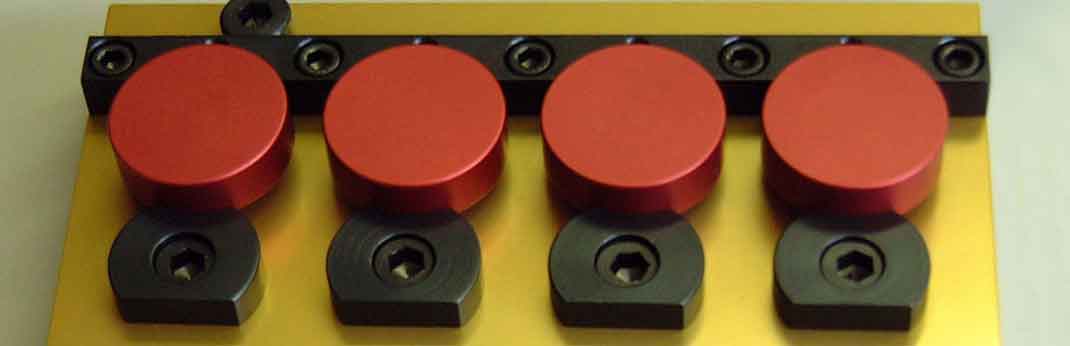

Milling the contour of the working piece into the washer results in a form-fit clamping that needs less holding force and is distributing it on more clamping surface.
By milling a step into the washer the part can be hold elevated for through-drilling.
A special screw is provided with each package to hold the washer in the proper place during machining.

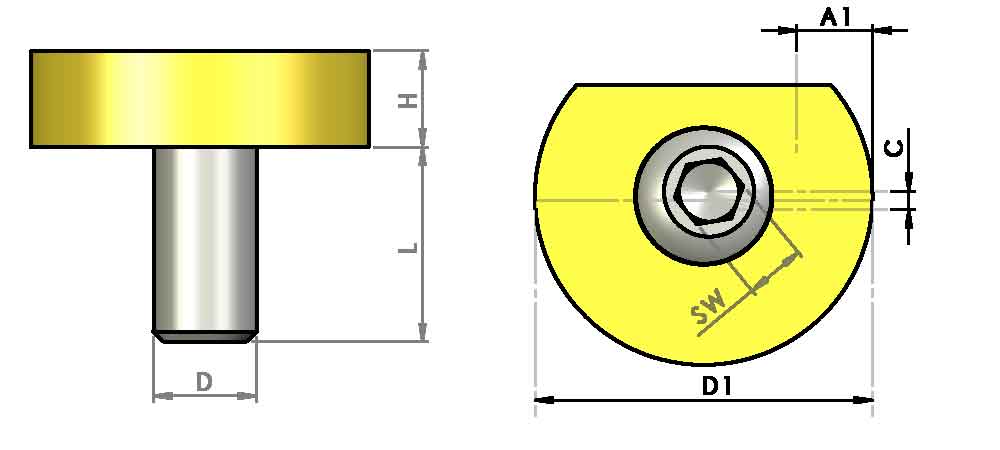

| Allowance | Thread | Washer | Washer- | Thread | Clamping | Wrench | Holding | Per | Art. No. |
|---|---|---|---|---|---|---|---|---|---|
| Ø | Ø | Height | Length | Travel | Size | Force | Pack | ||
| A1 [mm] | D [mm] | D1 [mm] | H [mm] | L [mm] | C [mm] | SW [mm] | [kN] | ||
| A1 is the amount of machinable stock. | |||||||||
| 6,4 | M6 | 24,9 | 6,4 | 11,9 | 1,0 | 4 | 3,3 | 4 | X50506 |
| 7,0 | M10 | 31,2 | 8,9 | 18,0 | 1,5 | 7 | 8,9 | 4 | X50510 |
| 7,6 | M12 | 37,6 | 11,4 | 22,9 | 2,0 | 8 | 17,8 | 4 | X50512 |
| 8,9 | M16 | 43,9 | 14,0 | 28,6 | 2,5 | 12 | 26,7 | 4 | X50516 |
Spare-Screws
| Thread | Per Pack | Art. No. |
|---|---|---|
| M4 | 10 | X50363 |
| M6 | 10 | X50365 |
| M8 | 8 | X50367 |
| M8VA* | 8 | X50366 |
| M10 | 4 | X50369 |
| M12 | 4 | X50371 |
| M16 | 4 | X50373 |
Spare-Form-Fit-Washers
| Size | Per Pack | Art. No. |
|---|---|---|
| M6 | 4 | X10604 |
| M10 | 4 | X10606 |
| M12 | 4 | X10612 |
| M16 | 4 | X10616 |
