Eccentric Fixture Clamps with Knife Edge Washer

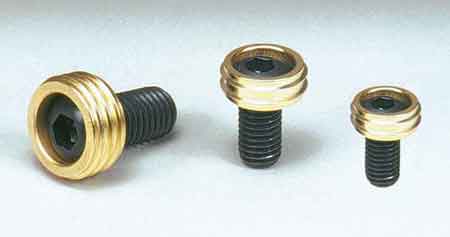

MITEE-BITE Knife Edge Clamps can be used instead of the original Brass Hex Clamps for clamping rough cut stock, castings and any material that requires a hardened clamping element.
Available in 3 sizes with a holding force up to 27 kN.

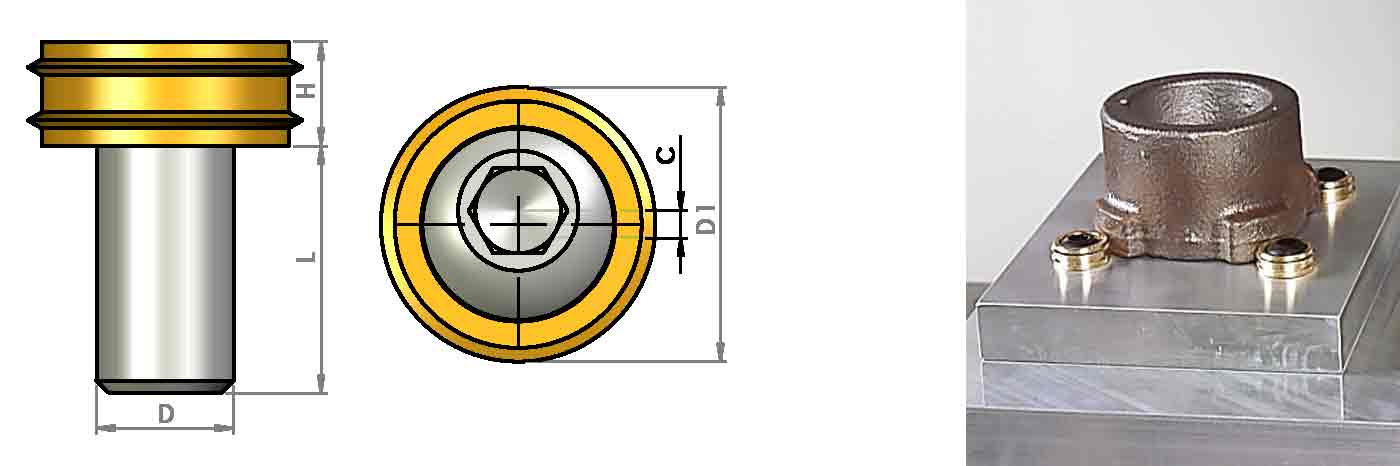

| Holding | Hexagon | Thread | Thread | Washer | Washer | Clamping | Per | Art. No. |
|---|---|---|---|---|---|---|---|---|
| Force | Socket | Ø | Length | Ø | Height | Travel | Pack | |
| [kN] | [mm] | D [mm] | L [mm] | D1 [mm] | H [mm] | C [mm] | ||
| 9 | 7 | M10 | 20 | 20,6 | 9,6 | 1,6 | 8 | X82584 |
| 18 | 8 | M12 | 22,5 | 25,4 | 9,6 | 2 | 8 | X82588 |
| 27 | 12 | M16 | 26,8 | 30,1 | 12,7 | 2,5 | 4 | X82592 |
Spare Screw
| Thread | Per Pack | Art. No. |
|---|---|---|
| M4 | 10 | X50363 |
| M6 | 10 | X50365 |
| M8 | 8 | X50367 |
| M8VA* | 8 | X50366 |
| M10 | 4 | X50369 |
| M12 | 4 | X50371 |
| M16 | 4 | X50373 |
Spare Knife-Edge-Washer
| Size | Per Pack | Art. No. |
|---|---|---|
| M10 | 8 | X12584 |
| M12 | 8 | X52588 |
| M16 | 4 | X12592 |
