MITEE-BITE Versa Krallegrip
VISE JAW SYSTEMS
Increase the functionality
of your Standard Vise!

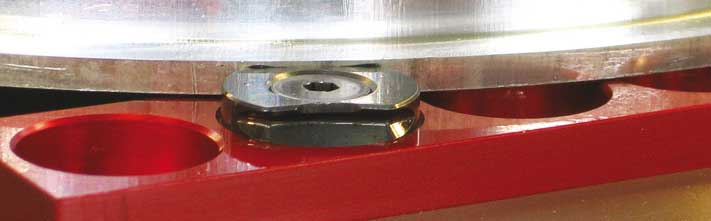

Versa KralleGrip offers the versatility of clamping standard vise work as well as providing a solution for difficult applications that would normally require fixturing or machining soft-jaws. By simply replacing your current jaws with the Versa KralleGrip system you can securely hold odd shaped parts while machining at speeds and feeds you never thought possible.
The Versa KralleGrip System can accommodate a wide range of part sizes as well as
holding multiple parts in a single cycle. The hardened (51-53 RC) Versa
KralleGrip has penetrating teeth designed to bite into your workpiece
preventing lateral and horizontal movement.
The grips will hold flame cut parts, castings and even parts with a negative draft!

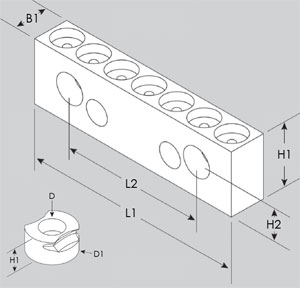

VERSA KralleGrip System
| f. Schraubstock | Art. Nr. | L1 | L2 | B1 | H1 | H2 |
|---|---|---|---|---|---|---|
| Set includes 4 Versa KralleGrips with M5 Screws | ||||||
| 150mm | 32166 | 150 | 65/100 | 25,4 | 47,75 | 17,47/23,87 |
| 200mm | 32168 | 200 | 100 | 25,4 | 47,75 | 23,87 |
VERSA KralleGrip Replacement Grips
| Art. Nr. | D | D1 | H1 | empfohlene | VE |
|---|---|---|---|---|---|
| Klemmhöhe | |||||
| 32175 | für M5 | 19,05 | 9,53 | 1,5-3,0mm | 2Stück |
