Fixture Clamps with Variable Hexagonal Washer
MITEE-BITE adjustable hexagonal cam action clamps provide reducing of costs and labour input for clamping devices.
Without having to displace a drill hole they enable to bridge the clamping range up to 24 mm merely by rotating the clamp to one of its six edges of which each one has a different distance from the centerline by 1 mm.

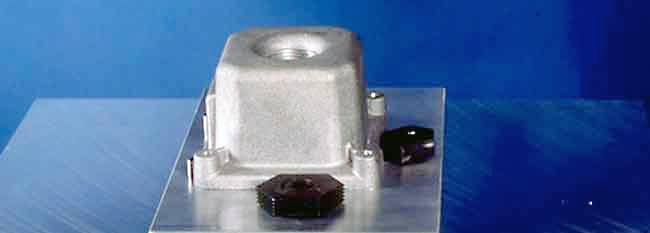

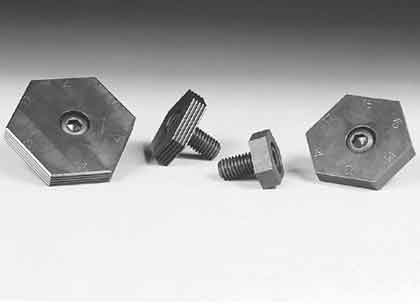

MITEE-BITE adjustable hexagonal cam action clamps are available with a smooth washer for machined parts and a knife edge washer for rough pieces and castings. They come with a M12 cam screw and are self-adjusting to the angular position of the machined part.
MITEE-BITE cam action clamps are perfectly qualified for modular clamping systems.
| Clamp | Workpiece-to-Centerline Distance | Edge |
|---|---|---|
| Part No. | [mm] | |
| All clamps are 10mm high. - Holding Force up to 18kN. | ||
| X95110 | 12, 13, 14, 15, 16, 17 | smooth |
| X95115 | 12, 13, 14, 15, 16, 17 | serrated |
| X95120 | 18, 19, 20, 21, 22, 23 | smooth |
| X95125 | 18, 19, 20, 21, 22, 23 | serrated |
| X95130 | 24, 25, 26, 27, 28, 29 | smooth |
| X95135 | 24, 25, 26, 27, 28, 29 | serrated |
| X95140 | 30, 31, 32, 33, 34, 35 | smooth |
| X95145 | 30, 31, 32, 33, 34, 35 | serrated |
