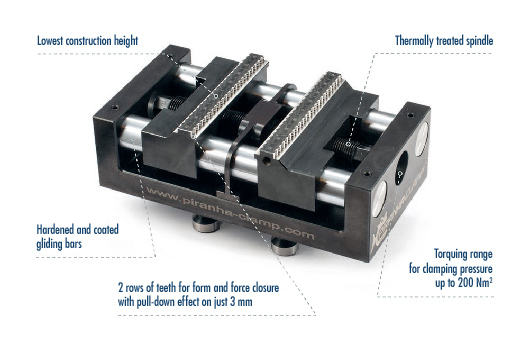

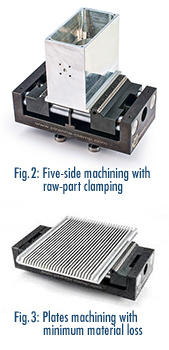

SNAPPER Centering Vises are especially designed for raw part machining of steel and non-ferrous metals, as well as plastics, and can ensure the very highest quality and reliability on 5-axis and other machining centers.
Clamping pressure up to 200 Nm2 on just 3 mm clamping depth with 2 rows of teeth (pull-down spring return and positioning).
The base body is hardened and grinded on all sides +/-0.02 mm, the clamping jaws are hardened and grinded. The spindle is thermally treated, the guide pillars hardened and coated.
No prior shaping necessary!
PIRANHA SNAPPER - Centering Vises
SNAPPER 170
Art. No.: PC540362
L x B x H : 170 x 90 x 55 mm
Gewicht : 4,5 kg
SNAPPER 170
with raised clamping jaws (+10 mm)
Art. No.: PC540446
L x B x H : 170 x 90 x 65 mm
Gewicht : 4,6 kg
SNAPPER 300
Art. No.: PC540401
L x B x H : 300 x 120 x 66 mm
Gewicht : 11,5 kg
SNAPPER 300
with raised clamping jaws (+10 mm
Art. No.: PC540447
L x B x H : 300 x 120 x 76 mm
Gewicht : 11,6 kg
