0.5" RAPTOR Dovetail Fixture

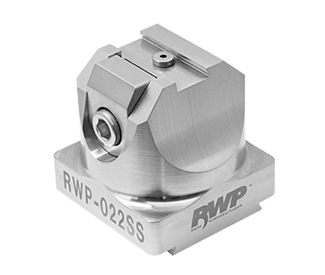

RAPTOR RWP-022SS
Art-No.: RWP-022SS
Stainless Steel 0.5" Dovetail Fixture
with 1.5" Dovetail Base
- Dovetail Width: 0.5 in
- Dovetail Height: 0.125 in
- Fixture Material: 17-4 Stainless Steel,
Heat treated to H-1150 - Fixture Material: Stainless Steel
- Fixture Height: 2 in
Description
The RWP-022SS is a .5" dovetail fixture used for milling applications. It is designed to connect directly to the following 1.50" dovetail fixtures: RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS, RWP-027, RWP-026.
Typical workpiece size dimensions (L x W x H): From: 1.26" x 1.0" x 0.50" To: 3.25" x 3.25" x 3.25".

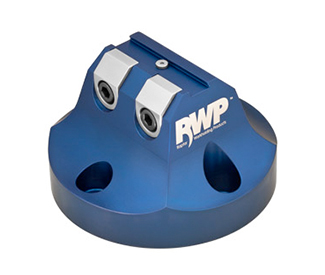

RAPTOR RWP-018
Art-No.: RWP-018
Aluminium 0.5" Dovetail Fixture 3.8" Dia. BC
- Dovetail Width: 0.5 in
- Dovetail Height: 0.125 in
- Fixture Material: 7075 Aluminum,
anodized: Class 2 Type II - Fixture Material: Stainless Steel
- Fixture Height: 3 in
Description
The RWP-018 is a .5" dovetail fixture for milling and turning applications. It offers superior clamping strength while allowing access to five sides of the workpiece. The fixture comes with four mounting bolts, one Dowel Pin for location. Optional base plugs (which you can turn down to the size you need) are sold separately
Typical workpiece size dimensions (L x W x H): From: 2.50" x 0.950" x 0.50" To: 4.75" x 4.75" x 4.75".

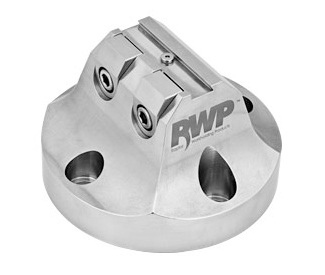

RAPTOR RWP-018SS
Art-No.: RWP-018SS
Stainless Steel 0.5" Dovetail Fixture 3.8" Dia. BC
- Dovetail Width: 0.5 in
- Dovetail Height: 0.125 in
- Fixture Material: 17-4 Stainless Steel,
Heat Treated to H-1150 - Fixture Material: 17-4 Stainless Steel
- Fixture Height: 3 in
Description
The RWP-018SS is a .5" Dovetail Fixture for milling and turning applications. It offers superior clamping strength while allowing access to five sides of the workpiece. The fixture comes with four mounting bolts, one dowel pin for location. Optional base plugs (which you can turn down to the size you need) are sold separately
Typical workpiece size dimensions (L x W x H): From: 2.50" x 0.950" x 0.50" To: 5.0" x 5.0" x 5.0".
