0.281" RAPTOR Dovetail Fixtures

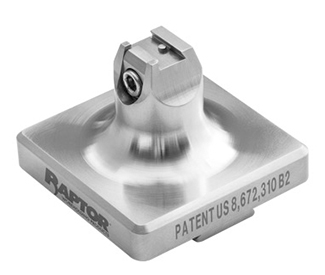

MINI-RAPTOR RWP-031SS
Art-No.: RWP-031SS
Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture
with .75" Dovetail Base
- Dovetail Width: 0.281 in
- Dovetail Height: 0.0781 in
- Fixture-Material: 17-4 Heat Treated Stainless Steel
- Fixture-Clamp: 17-4 Stainless Steel
- Fixture Height: 1.418 in
Description
This Mini Raptor is a .281" dovetail fixture for milling applications. It is designed to connect directly to the following 0.75" dovetail fixtures: RWP-002, RWP-002SS, RWP-015, RWP-023, RWP-024 and RWP-030SS. This allows you to quickly machine smaller size parts without taking your primary fixtures off of the machine.
Typical workpiece size dimensions (L x W x H): From: 0.478" x 0.478" x 0.50" To: 1.25" x 1.25" x 1.25"

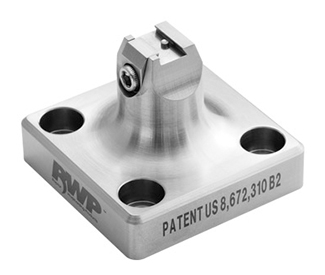

MINI-RAPTOR RWP-032SS
Art-No.: RWP-032SS
Stainless Steel 0.281"W x 0.0781"H Dovetail Fixture
for Fixture Plates
- Dovetail Width: 0.281 in
- Dovetail Height: 0.0781 in
- Fixture-Material: 17-4 Heat Treated Stainless Steel
- Fixture-Clamp: 17-4 Stainless Steel
- Fixture Height: 1.563 in
Description
The Mini Raptor RWP-032SS is a .281" dovetail fixture for milling applications, designed to connect to your machine using the four mounting holes.
Typical workpiece size dimensions (L x W x H): From: 0.478" x 0.478" x 0.50" To: 1.25" x 1.25" x 1.25"
