Side-Lock Xpansion Clamps

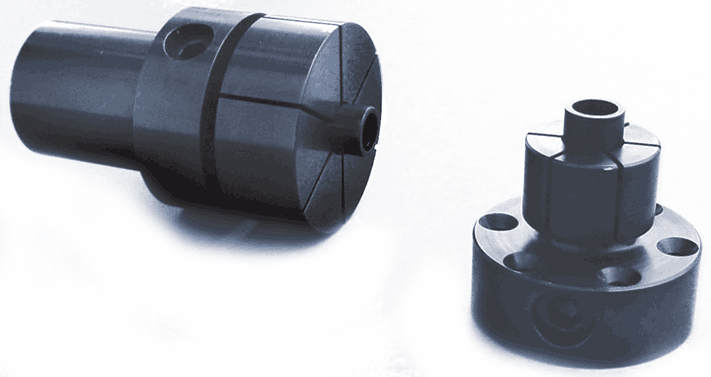

The MITEE-BITE Side-Lock Xpansion Clamp is the ideal way to hold parts on the bore when you can not access the tapered screw. It's available in different sizes (see chart), whereas the customer has to machine the clamp to fit the bore of the part.
The Side-Loc Xpansion Clamp is available in two designs:
- for milling operations,
- for lathe applications (with a straight mounting shank of 25 mm).

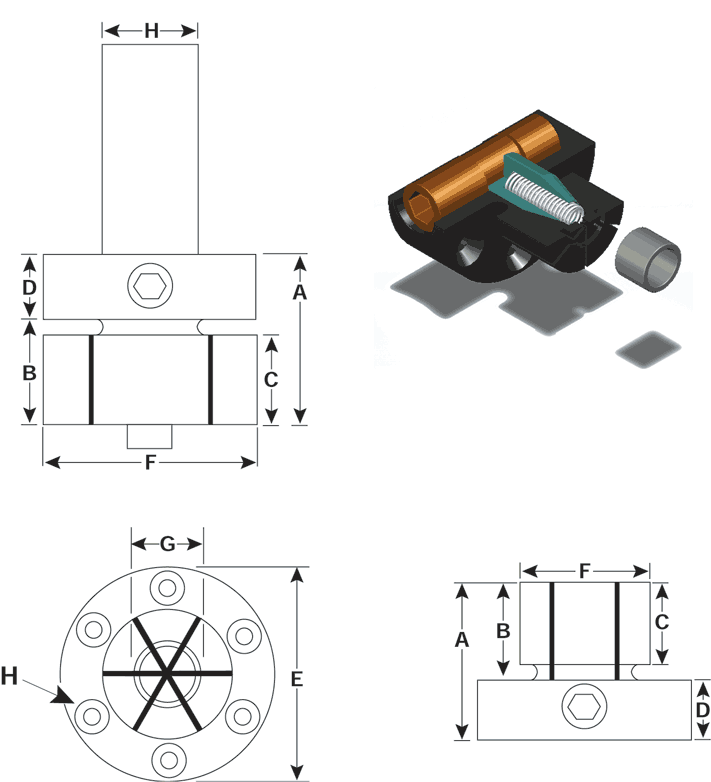

| Art. | Version | A | B | C | D | E | F | G* | H | TKØ | Hexagon | Holding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. | Socket | Force | ||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | ||
| Mill: for milling operations. Lath: for lathe applications | ||||||||||||
| 38210 | Mill | 41,00 | 22,00 | 17,50 | 19,00 | 50h8 | 28,70 | 17,80 | M4 | 39,40 | 6,00 | 20,00 |
| 38370 | Lath | 44,40 | 25,00 | 21,00 | 19,00 | 53,3h8 | 53,30 | 18,00 | Ø25 | L=45 | 6,00 | 20,00 |
