XYZ Pins
MITEE-BITE XYZ Pins provide a "discrete" workholding solution for tombstones, grid and fixture plates, enabling full tool access to the work surface with no external clamping interference. The unique, patent pending design provides accurate location, repeatability and high holding forces for securing parts on an internal diameter. Available as threaded pin and press-fit pin.

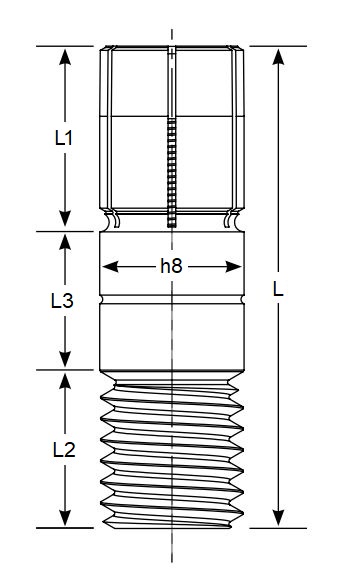

Threaded Pins
| Art.No. | Thread | L | L1 | L2 | L3 | h8 | D1* | Spare Screw | Screw |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | Thread x Length | |||
| D1* is the minimum diameter to which the pin can be machined down. ** The torque of the body must exceed the torque of the screw. | |||||||||
| X38850 | M12 | 40 | 15 | 13 | 12 | 12 | 10,5 | X38010 | M6 x 30 mm |
| X38860 | M16 | 45 | 16 | 13 | 16 | 16 | 12 | X38020 | M8 x 30 mm |
Clamping of component achieved via tightening of tapered screw to expand the xyz pin collet; expansion of 0.7 mm is possible. The top of the pin has been slightly tapered to maximise line contact in the mounting bore and to proved adequate clearance during loading and unloading of workpieces. - If recessing pin into a fixture at a depth below the collet slits, be sure to provide sufficient clearance to allow for expansion of clamp (approx. 0.7 mm).
Threaded XYZ Pins are installed via a drilled and reamed hole for precise location, or set in a hardened drill bush for additional fixture strenth and wear resistance.
The Threaded MITEE-BITE XYZ Pin comes with a tapered screw.

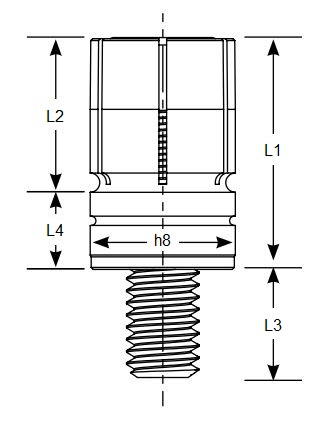

Press Fit Pins
| Stainless Model | Free-Cutting Steel Model | L1 | L2 | L3 | L4 | h8 | D1* | Spare | Screw | Assembling |
|---|---|---|---|---|---|---|---|---|---|---|
| Art.No. | Art.No. | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | Screw | Thread x Length | Tool |
| D1* is the minimum diameter to which the pin can be machined down. ** The Press Fit Pin Kit includes a screw. | ||||||||||
| X38730 | X38630 | 13 | 7 | 7,3 | 5,8 | 6 | 5,5 | X38731S | M3 x 16 mm | X38720 |
| X38740 | X38640 | 19 | 12,7 | 8,4 | 6,35 | 10 | 7,5 | X38002S | M4 x 22 mm | X38721 |
| X38750 | X38650 | 19 | 12,7 | 11,1 | 6,35 | 12 | 10,5 | X38010S | M6 x 22 mm | X38722 |
| X38760 | X38660 | 19 | 12,7 | 13 | 6,35 | 16 | 12 | X38020S | M8 x 22 mm | X38723 |

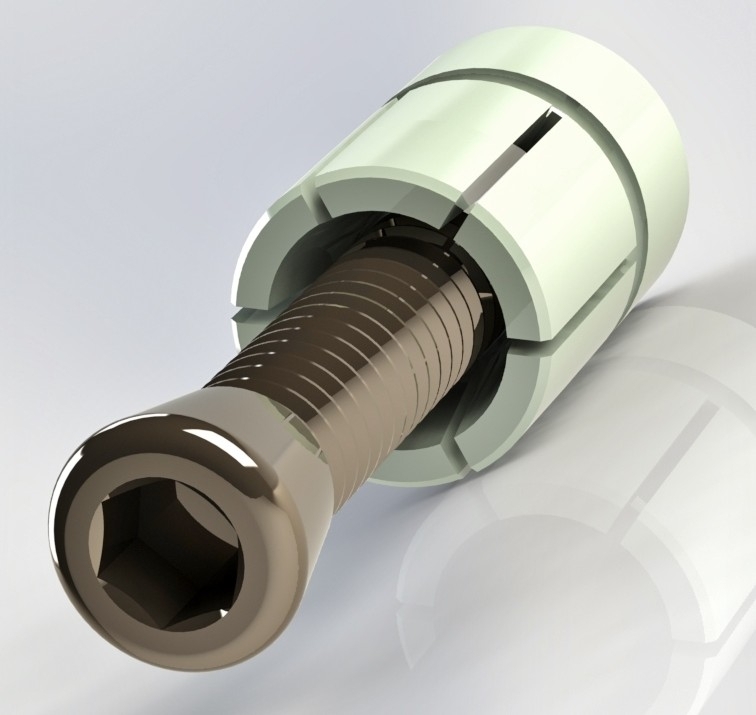

Clamping of component achieved via tightening of tapered screw to expand the xyz pin collet; expansion of 0.7 mm is possible. The top of the pin has been slightly tapered to maximise line contact in the mouting bore and to proved adequate clearance during loading and unloading of workpieces.
Press-fit XYZ expansion pins are for installation into a precision bored hole, with a centered threaded hole to receive tapered screw. If recessing pin into a fixture at a depth below the collet slits, be sure to provide sufficient clearance to allow for expansion of clamp (approx. 0.7mm).
The MITEE-BITE Press Fit XYZ Pin comes with a tapered screw.
