Machinable Double Edge Uniforce Clamps

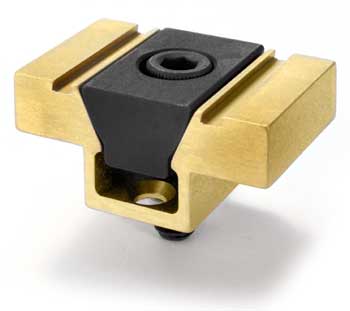

The compact MITEE BITE Uniforce Clamp comes with extra material on the clamping jaws, so it can be machined to conform to the shape of your workpiece, enabling you to fixture unusual applications and produce a form-fit clamping, spreading the clamping force uniformly on both sides of the 7075-T6 aluminum channel.
Key Benefits:
- holds round and unusual shape parts with ease,
- clamps weak parts free of torsion,
- due to its compact construction, space-saving

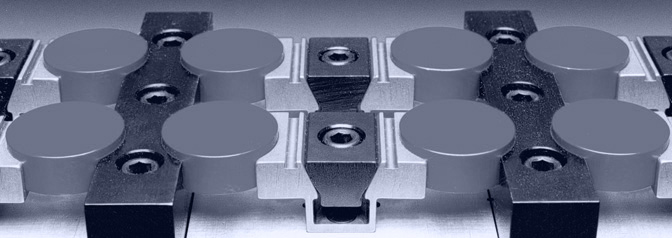

multiple clamping is possible, - high productivity, low non-productive times,
- perfectly suitable for machining centers,
milling and boring machines.
A unique locking plate is provided to make the clamp rigid for machining the jaws to your specifications, without vibration. Remove locking plate before clamping workpiece. - Double Edge Uniforce Clamps are available in 5 widths:

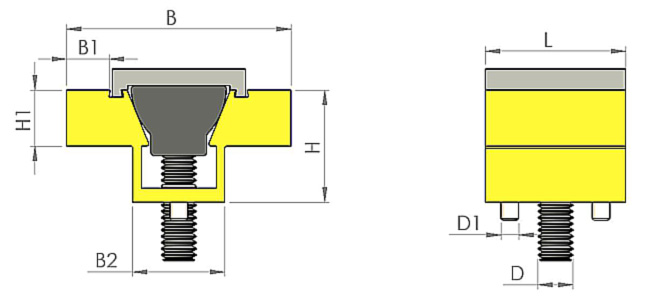

| B | H | L | B2 | H1 | B1 | D1 | D | Torque | Holding | Per | Art.No. | Locking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Force | Pack | Plate | ||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Nm] | [N] | |||
| 28,6 | 12,7 | 15,7 | 10,67 | 6,3 | 4,6 | M2 | M4 | 3,4 | 2225 | 1 | 80050 | Yes |
| 28,6 | 12,7 | 15,7 | 10,67 | 6,3 | 4,6 | M2 | M4 | 3,4 | 2225 | 1 | 80055 | No |
| 38,1 | 19,1 | 23,9 | 16,05 | 9,4 | 6,6 | M4 | M6 | 14,3 | 6675 | 1 | 80075 | Yes |
| 38,1 | 19,1 | 23,9 | 16,05 | 9,4 | 6,6 | M4 | M6 | 14,3 | 6675 | 1 | 80080 | No |
| 50,8 | 25,4 | 31,8 | 20,83 | 12,7 | 9,9 | M4 | M8 | 14,5 | 8900 | 1 | 80100 | Yes |
| 50,8 | 25,4 | 31,8 | 20,83 | 12,7 | 9,9 | M4 | M8 | 14,5 | 8900 | 1 | 80105 | No |
| 76,2 | 38,1 | 47,5 | 30,86 | 19,1 | 15,7 | M5 | M12 | 38,4 | 15575 | 1 | 80150 | Yes |
| 76,2 | 38,1 | 47,5 | 30,86 | 19,1 | 15,7 | M5 | M12 | 38,4 | 15575 | 1 | 80155 | No |
| 101,6 | 50,8 | 63,5 | 41,28 | 25,4 | 20,3 | M6 | M16 | 74,6 | 26700 | 1 | 80200 | Yes |
| 101,6 | 50,8 | 63,5 | 41,28 | 25,4 | 20,3 | M6 | M16 | 74,6 | 26700 | 1 | 80205 | No |
