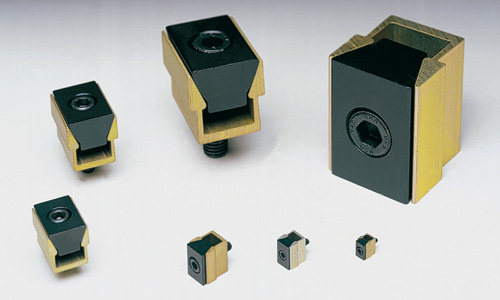

MITEE-BITE Double Edge Uniforce Clamps
MITEE-BITE Double Edge Clamps are extremely compact and can clamp two workpieces simultaneously.
Benefits at a Glance:
- Due to its compact construction, space-saving multiple clamping is possible,
reducing tool changes and costs of fixtures, - good value for money,
- perfectly suited to clamp both round and rectangular pieces,
- strong holding force up to 27kN (2,7t).
Manufacturing a fixture becomes even more easy with our Locating Rails and Clamping Bars.
Allow us to show you how our expertise will contribute to your individual clamping problem.

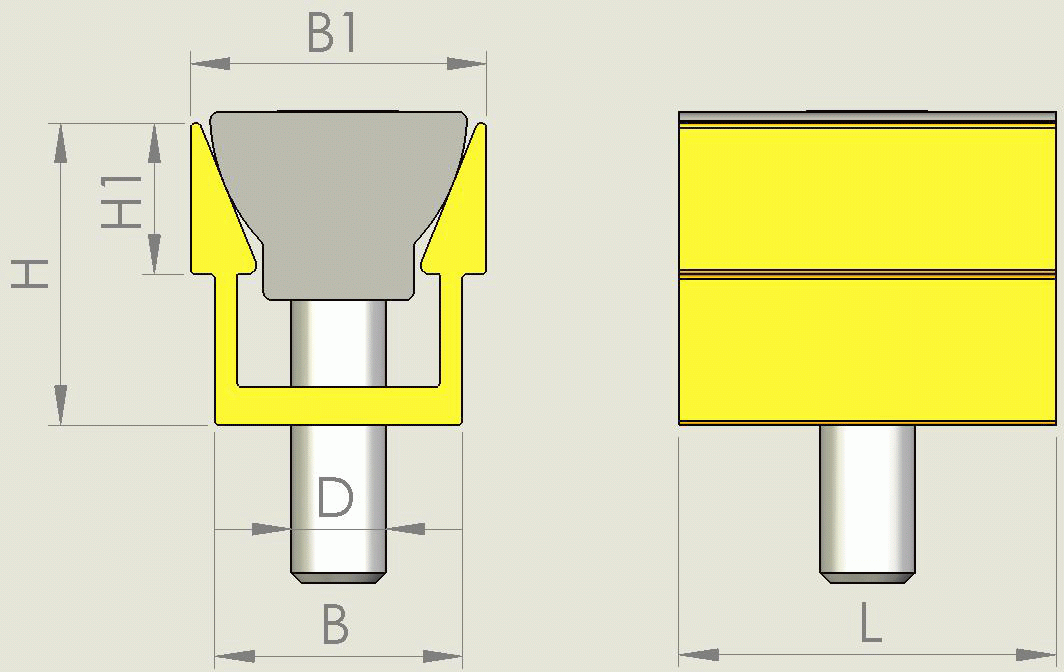

| B1 | H | L | B | H1 | D | SW | A | Holding | Torque | Per | Art. No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| spread | Force | Pack | |||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [Nm] | ||
| 6,1 | 6,9 | 8,1 | 5,3 | 3,6 | M2 | 1,5 | 6,7 | 0,9 | 0,7 | 6 | X80250 |
| 9,1 | 9,7 | 11,9 | 7,9 | 4,7 | M2,5 | 2 | 10 | 1,3 | 1,5 | 6 | X80375 |
| 12,3 | 14,5 | 15,9 | 10,4 | 5,6 | M4 | 3 | 13,2 | 2,2 | 3,4 | 8 | X80500 |
| 18,6 | 19 | 23,8 | 16,1 | 9,5 | M6 | 5 | 20,3 | 6,7 | 14,3 | 6 | X80750 |
| 24,8 | 25,9 | 31,7 | 20,8 | 12,7 | M8 | 6 | 26,9 | 8,9 | 14,5 | 4 | X81000 |
| 37,3 | 38,6 | 47,6 | 30,8 | 19 | M10 | 10 | 39,9 | 15,6 | 38,4 | 2 | X81500 |
| 49,7 | 51,5 | 63,5 | 41,2 | 25,4 | M12 | 14 | 53 | 26,7 | 74,6 | 2 | X82000 |
Spare-Aluminium-Channel
| Art. No. | for Size | Per Pack |
|---|---|---|
| (Outer part with drill) | ||
| 60205 | 80250 | 6 |
| 60207 | 80375 | 6 |
| 60210 | 80500 | 8 |
| 60220 | 80750 | 6 |
| 60230 | 81000 | 4 |
| 60240 | 81500 | 2 |
| 60245 | 82000 | 2 |
Spare-Steel-Wedge
| Art. No. | for Size | Per Pack |
|---|---|---|
| (Inner part with countersink) | ||
| 60305 | 80250 | 6 |
| 60307 | 80375 | 6 |
| 60310 | 80500 | 8 |
| 60320 | 80750 | 6 |
| 60330 | 81000 | 5 |
| 60340 | 81500 | 2 |
| 60350 | 82000 | 2 |

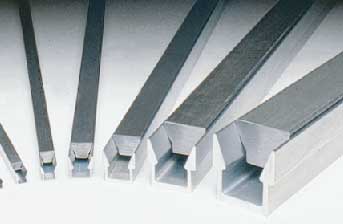

Double Edge Clamp sold by meter
The POWER CLAMP Double Edge Clamp is available as 508 mm long bar as well. The long length clamping jaws give you greater versatility to machine the clamp to conform even better to your clamping specifications.
Double Edge Clamp Bars are available in 7 sizes without drills.
| Art. No. | Description | like Size |
|---|---|---|
| 62010 | Alu Channel | 80250 |
| 63010 | Steel Wedge | 80250 |
| 62020 | Alu Channel | 80375 |
| 63020 | Steel Wedge | 80375 |
| 62120 | Alu Channel | 80500 |
| 63120 | Steel Wedge | 80500 |
| 62220 | Alu Channel | 80750 |
| 63220 | Steel Wedge | 80750 |
| 62320 | Alu Channel | 81000 |
| 63320 | Steel Wedge | 81000 |
| 62420 | Alu Channel | 81500 |
| 63420 | Steel Wedge | 81500 |
| 62520 | Alu Channel | 82000 |
| 63520 | Steel Wedge | 82000 |
