MITEE-BITE Pitbull Machinable Clamps
for Machine Tables

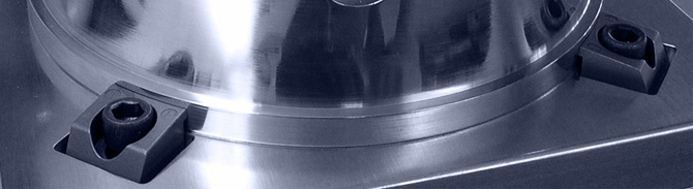

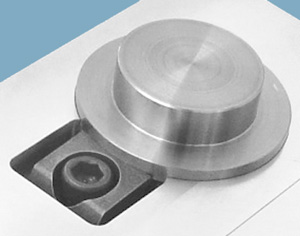

The popular PITBULL® Fixture Clamp is also available in a machinable version with additional material* on the clamping face to allow for machining a radius.
This PITBULL® Clamp is made of A2 tool steel and heat treated to about 43RC for long life, yet still machinable.It is available in two sizes with 26000 and 50000 N of holding force. A dowel pin is included in each package to locate clamp while machining radius.
Like all Pitbull® Clamps it has a strong positive down force and a very low gripping profile, reducing material cost and number of operations.
* The machining allowance is 1.5 mm for Part No. 56077 and 4.5 mm for Part No. 56088.

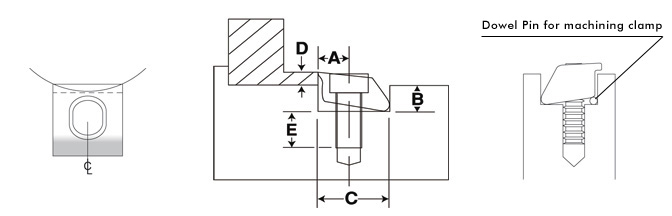

| Art.No. | A | B | C | D | E | Clamp | Thread | Hold | Torque | Clamp | D1 | Per |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Force | Travel | Pack | |||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [Nm] | [mm] | [mm] | |||
| D1: Diameter of Dowel Pin for machining the clamp ( included in scope of supply). | ||||||||||||
| 56077 | 10,16 | 11,43 | 25,4 | 6,35 | 18 | 25,4 | M10 | 26 | 40,6 | 1,27 | 3,18 | 4 |
| 56088 | 15,24 | 16,26 | 38,1 | 9,52 | 19,6 | 38,1 | M12 | 50 | 145 | 1,9 | 6,35 | 2 |
