MITEE-BIT Pitbull Clamps
MITEE-BITE Pitbull® Fixture Clamps remain the lowest profile, highest holding force clamp in the industry today. High vertical and horizontal clamping forces are generated, considering the size of the Pitbull® Clamps.

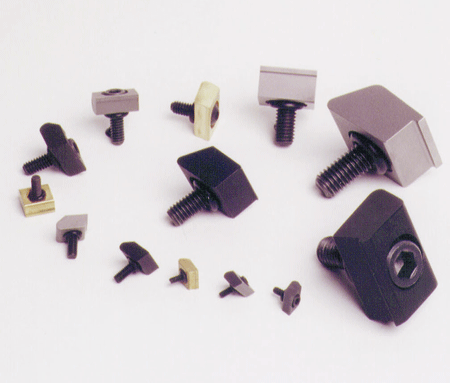

The PITBULL® Clamp is available in 5 sizes and several styles:
- a tool steel knife edge version for aggressive stock removal,
- a tool steel blunt edge version for general purpose,
- a brass blunt edge version to help prevent
marring the workpiece, - and a machinable version.

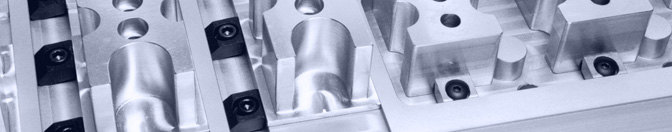

Unique Features of PITBULL® Clamps
- Extremely low bite,
- High holding forces up to 37,5 kN with positive strong down force,
- High resistance to rip-out,
- Simple, sturdy, high quality design and components,
- Gain maximum tool access to your work,
- Virtually eliminate lost work,
- Great option with hydraulic.

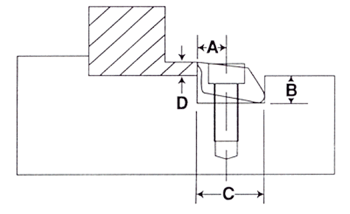

| Art.No. | Clamp | Mat | A | B | C | D | Thread | Clamp | Hold | Torque | Clamping | Per |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Edge | * | H9 | Width | Force | Travel | Pack | ||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [Nm] | [mm] | |||||
| * Material: S: Steel, B: Brass | ||||||||||||
| 56000 | knife | S | 3,8 | 3,6 | 9,5 | 1,9 | M2,5 | 9,5 | 2,8 | 1,8 | 0,15 | 8 |
| 56010 | blunt | S | 3,8 | 3,6 | 9,5 | 1,9 | M2,5 | 9,5 | 2,8 | 1,8 | 0,15 | 8 |
| 56015 | blunt | B | 3,8 | 3,6 | 9,5 | 1,9 | M2,5 | 9,5 | 0,9 | 0,6 | 0,15 | 8 |
| 56020 | knife | S | 5,1 | 4,8 | 12,7 | 2,6 | M4 | 12,7 | 6,6 | 5,6 | 0,4 | 8 |
| 56030 | blunt | S | 5,1 | 4,8 | 12,7 | 2,6 | M4 | 12,7 | 6,6 | 5,6 | 0,4 | 8 |
| 56040 | blunt | B | 5,1 | 4,8 | 12,7 | 2,6 | M4 | 12,7 | 1,8 | 2,8 | 0,4 | 8 |
| 56050 | knife | S | 7,6 | 7,2 | 19,05 | 3,8 | M6 | 19,1 | 16 | 22,5 | 0,6 | 6 |
| 56060 | blunt | S | 7,6 | 7,2 | 19,05 | 3,8 | M6 | 19,1 | 16 | 22,5 | 0,6 | 6 |
| 56065 | blunt | B | 7,6 | 7,2 | 19,05 | 3,8 | M6 | 19,1 | 4,2 | 5,6 | 0,6 | 6 |
| 56070 | knife | S | 10,2 | 11,4 | 25,4 | 6,3 | M10 | 25,4 | 26 | 40 | 1,2 | 4 |
| 56075 | blunt | S | 10,2 | 11,4 | 25,4 | 6,3 | M10 | 25,4 | 26 | 40 | 1,2 | 4 |
| 56080 | knife | S | 15,2 | 16,3 | 38,1 | 9,5 | M12 | 38,1 | 37,5 | 200 | 1,9 | 2 |
| 56085 | blunt | S | 15,2 | 16,3 | 38,1 | 9,5 | M12 | 38,1 | 37,5 | 200 | 1,9 | 2 |
All versions of the PITBULL® Clamp support itself on its backside and generate high vertical and horizontal clamping forces up to 37,5 kN with a strong positive down force. However, the knife edge clamps bite into the material for more aggressive machining, while the blunt edge is less likely to mark the workpiece.
Included in delivery is:
- 1 Standard Cap Screw (DIN 912),
- 1 Clamp,
- 1 O-Ring, oil-resistant.
