MITEE-BITE Modular Pitbull® Clamps for Machine Tables

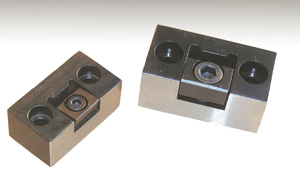

The very compact Modular Pitbull® Clamp from MITEE-BITE generates high holding forces up to 26 kN. The back of the clamp can be used to locate another workpiece and is ground square to the bottom for precise location of parts. The height of the clamp can be adjusted by the depth of the milled slot.
MITEE-BITE Modular Pitbull® Clamps are available in two sizes with holding forces of 16,000 N and 26,000 N.

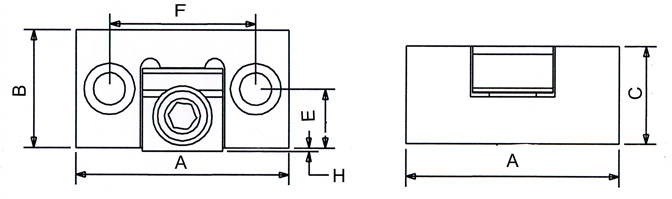

| Art. No. | A | B | C | E | F | Clamp- | Hold | Torque | Screw | Clamp | Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Travel | Force | Width | |||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | H [mm] | [kN] | [Nm] | [mm] | |||
| 56220 | 57,1 | 34,15 | 25,1 | 15,7 | 38,1 | 0,61 | 16 | 22,5 | M8 | 19,1 | M6 |
| 56230 | 68,6 | 37,59 | 31,5 | 18,8 | 47 | 1,27 | 26 | 40,6 | M10 | 25,4 | M10 |
