MITEE-BITE Universal Pitbull® Clamps
for Machine Tables

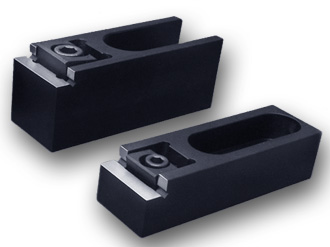

The slotted Universal Pitbull® Clamp from MITEE-BITE with a step offers increased versatility through its unique riser design. This clamp supports the work piece off the machine table for through milling and drilling. The hardened and ground clamps are designed for use on work cubes, as well as, machine tables with tapped holes or t-slots.

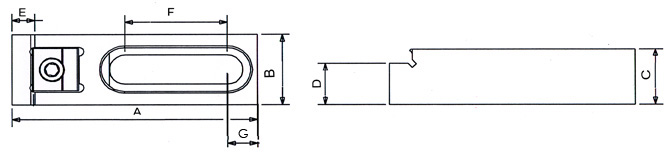

| Art.No. | A | B | C | D | E | F | G | Clamp | Hold | Screw | for | Clamp | Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Travel | Force | T-Slot | Width | ||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kN] | [mm] | ||||
| 56240 | 103,6 | 31,7 | 25,1 | 18,542 | 9,1 | 43,2 | 12,7 | 0,61 | 16 | M12 | 14, 16, 18 | 19,1 | M6 |
| 56250 | 107 | 38,1 | 40,9 | 35 | 9,1 | 38,6 | 10,9 | 1,27 | 26 | M16 | 22, 24 | 25,4 | M10 |
